3D Printers for Dental Applications

Biodenta carries Dental Printers made by EnvisionTEC, a world leader in 3D printer manufacturing.

Why choose EnvisionTEC printers from Biodenta?

  •   Smooth surface finish of models from the machine means little or no hand finishing
  •   Build after build, the EnvisionTEC 3D Printers offer reliability
  •   Proprietary material that offers a wide array of functionality
  •   Professional installation and world-class service provided by Biodenta’s qualified service technicians.

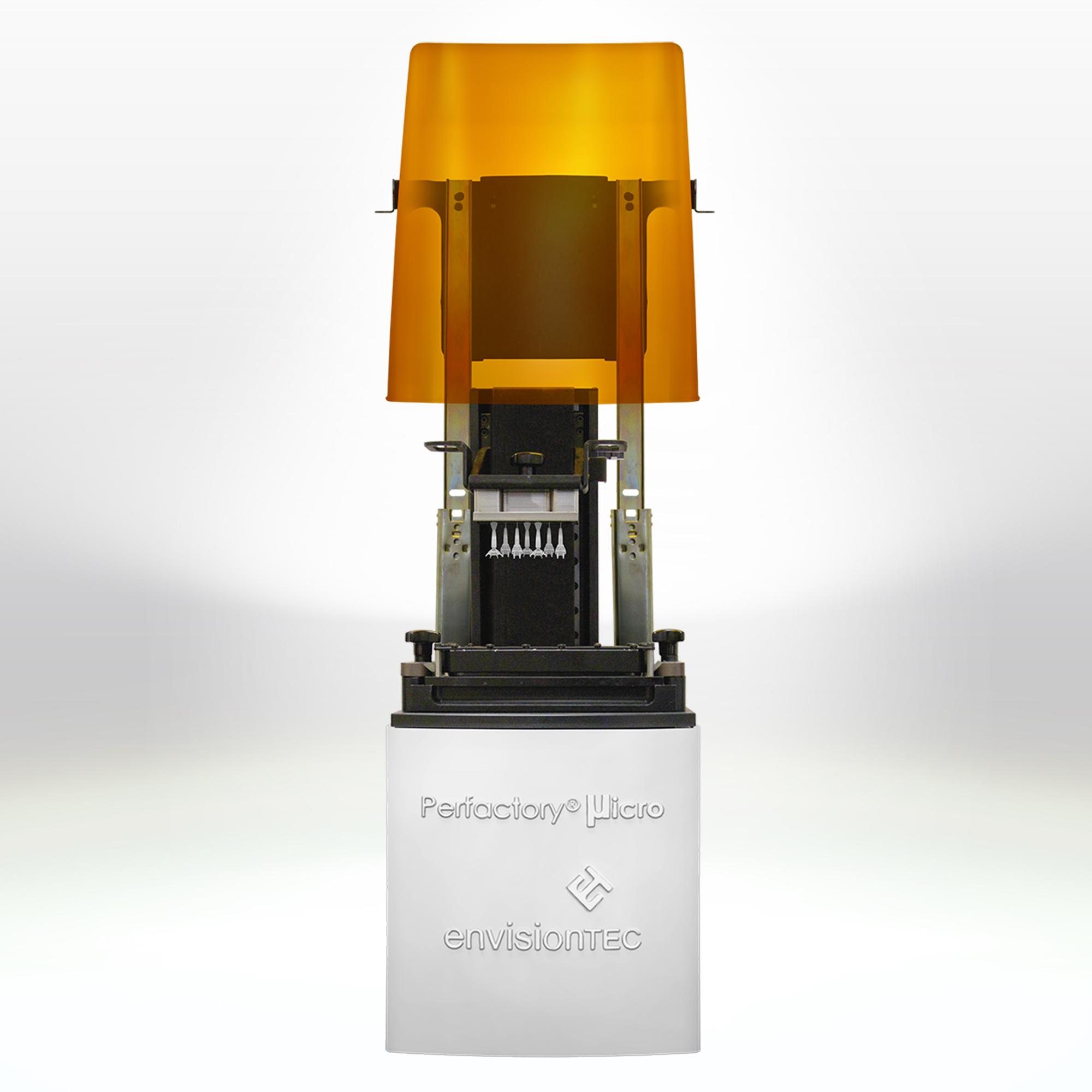

Micro DGP


Your choice for Surgical Guides
  •   Smallest desktop 3D printers in the EnvisionTEC portfolio
  •   Produces highly detailed crowns and copings for casting
  •   Produces high quality dental models for the fabrication of orthodontic appliances
  •   Is able to process Clear Guide M material for the production of surgical drill guides.
  •   Up to ten crowns or copings per build in two and a half hours on the Micro DDP or up to 7 dental models on the Micro Ortho in four hours, material dependent.
  •   Long life LED light source with zero maintenance and very low acquisition cost
Build Envelope* : 100 x 75 x 100 mm
Native Pixel Resolution: 98 μm
Dynamic Voxel** Resolution in Z : 50 μm - 100 μm
Footprint: 28 x 25 x 61 cm
Weight Approx: 13kg

System specifications are subject to change without notice. | *Deviation of +/- 2mm possible. | **A voxel is volumetric pixel. | ***Pre-Adjusted by each material module and material dependent.

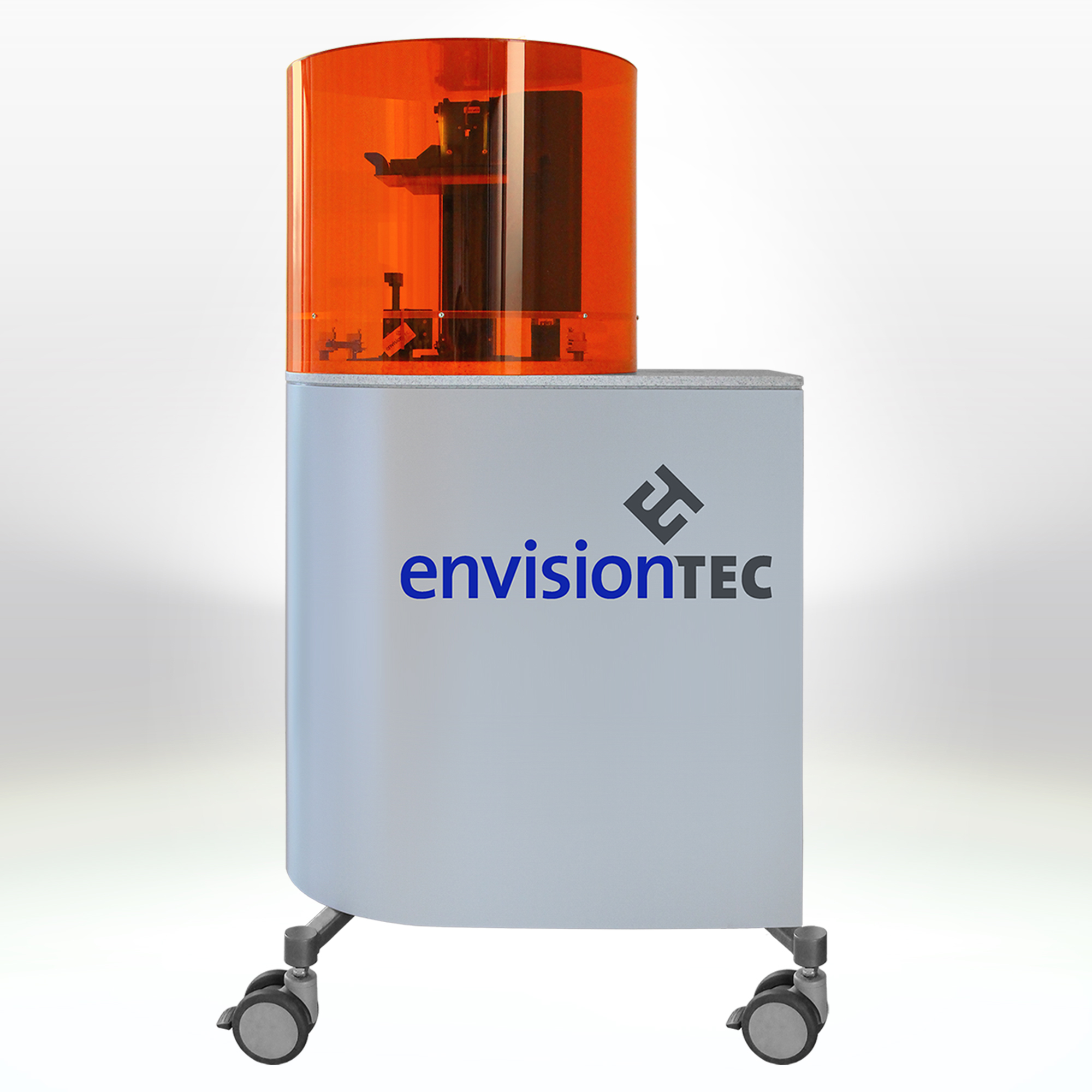

Perfactory DDP4 M


The Multi-Talent
  •   Low cost, user-friendly 3D printer offering ease of maintenance and outstanding reliability
  •   Produces finest detail in the shortest period of time
  •   Can print up to 95 units such as coping and crowns or multiple unit bridges in less than 1 hour 45 minutes
  •   Capable of printing long term temporaries for direct use in the mouth using E-Dent material as well as printing partials and models (full arches and quads)
Build Envelope* : 160 x 100 x 160 mm
Projector Resolution: 1920 x 1200 pixels
Native Voxel** Size XY: 83 μm
ERM Voxel Size XY***: 42 μm
Footprint: 73 x 48 x 135 cm
Weight Approx: 85 kg

System specifications are subject to change without notice. | * Deviation of +/- 2mm possible | ** A voxel is volumetric pixel | *** Pre-Adjusted by each material module and material dependent.

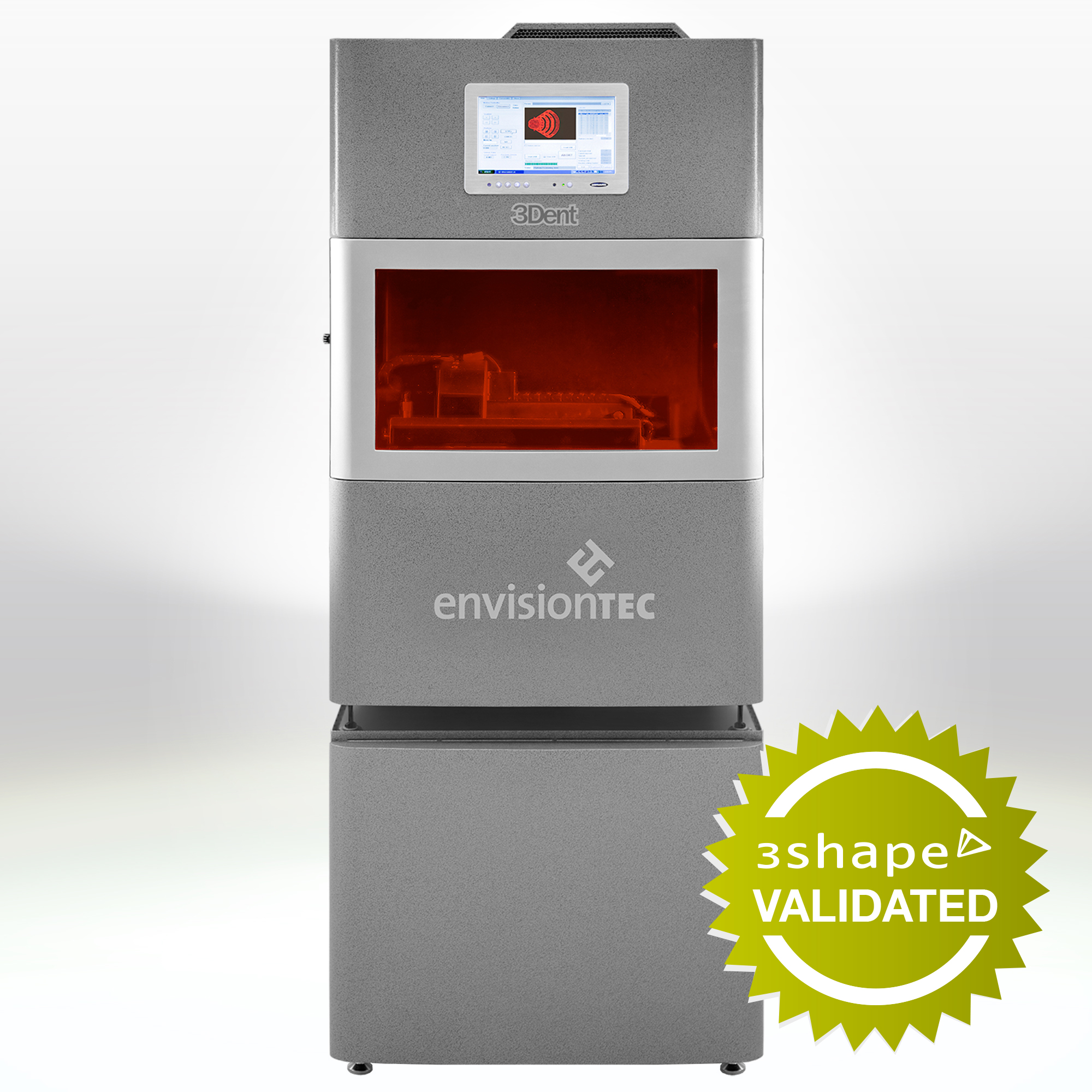

3Dent


The Workhorse for Model Production
  •   3Dent® dental model printers use Scan, Spin, and Selectively Photocure (3SP®) Technology
  •   Features office friendly plug-and-play operation with a built-in touch screen
  •   Simple user interface with built-in touch screen
  •   Low part cost due to minimal material waste
  •   Low maintenance technology includes an imaging light source with a two-year warranty
Maximum Building envelope:* : 266 x 175 x 76 mm
Voxel** resolution in X & Y: 50 μm
Dynamic Voxel*** Resolution in Z : 25 μm - 100 μm
Footprint: 74 x 76 x 117 cm

System specifications are subject to change without notice. | * Deviation of +/- 2mm possible | ** A voxel is volumetric pixel | *** Pre-Adjusted by each material module and material dependent.

Materials


E-Denstone

EnvisionTEC’s E-Denstone has been developed for dental model manufacturing. The peach color provides an attractive choice for modeling that is similar in look and feel to common die stones used in labs. It may be used in traditional manufacturing settings or for CAD-based 3D printing. This is the only material that enables die trimming and margin marking without concerns for layer lines. Die paint sticks to the dies just like plaster and will not peel off. The material achieves the look and feel of traditional gypsum models, making it preferable to other resin-based materials currently on the market. The low-viscosity formula combined with the use of a high-accuracy 3D printer produces superior results with no loss of anatomical detail.

Clear Guide
EnvisionTEC’s Clear Guide is the clearest material currently available, allowing maximum visibility for the production of accurate drill guides on the Perfactory DDP machines. Clear Guide has met the requirements of USP Class VI* certification testing and is suitable for approved applications in the medical industries.

*DISCLAIMER: It is the responsibility of each customer to determine that its use of any Class VI certified material is safe, lawful and technically suitable to the customer’s intended applications. Customers should conduct their own testing to ensure that this is the case

Accessories

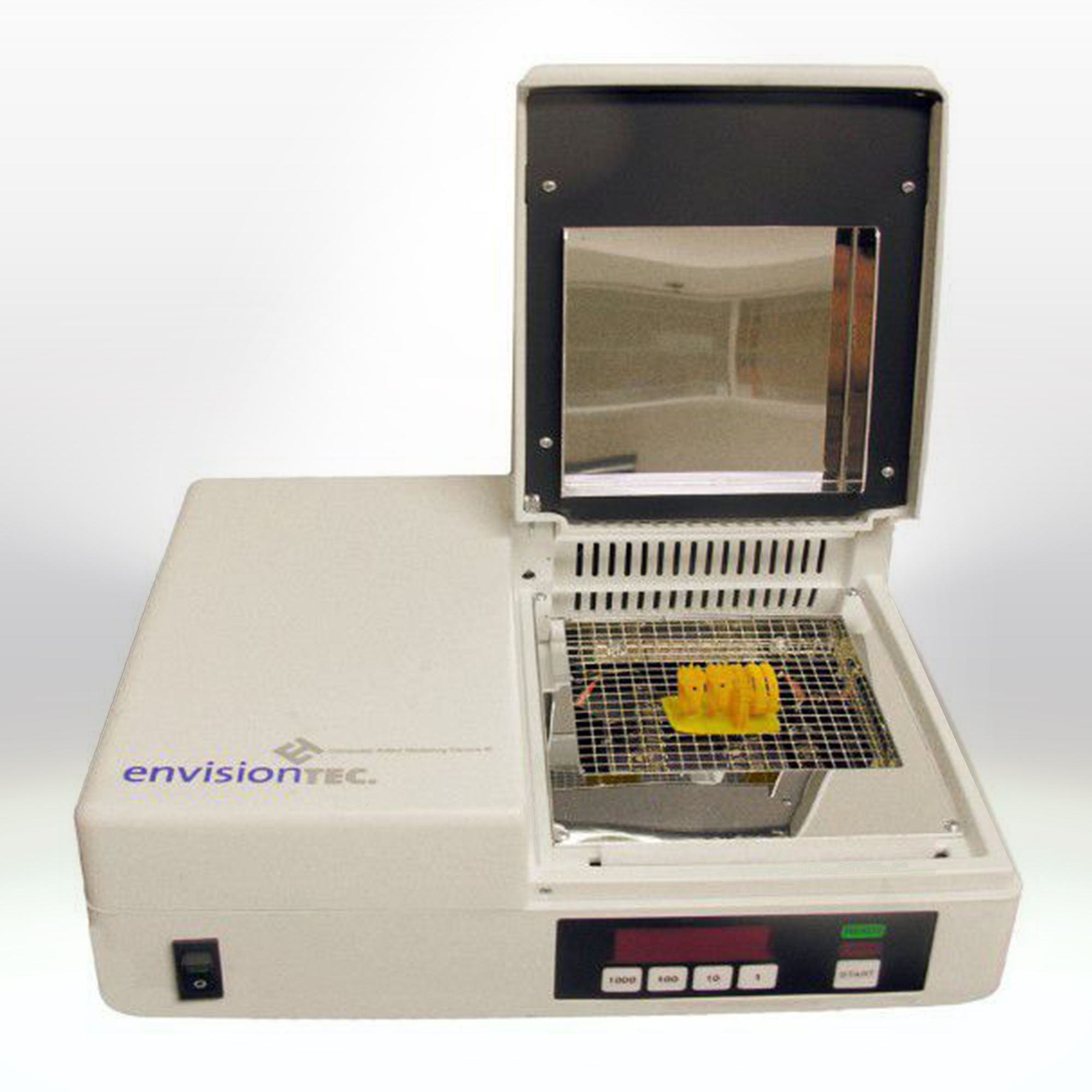

Otoflash

The Otoflash is a light polymerization chamber for the hardening/curing of light curing resins for jewelry, dental, and otoplastic applications. Two photoflash lamps at the bottom of the curing chamber operate in a work mode with a frequency of 10 flashes per second. The photo-flash lamps produce a very intensive light radiation in a spectrum from 300 up to 700 nm.

Because of this intensive light radiation, a better hardening of the materials is possible, resulting in materials with good physical values and reduced content of residual monomer versus using other lamp types with a different light emitting spectrum.
